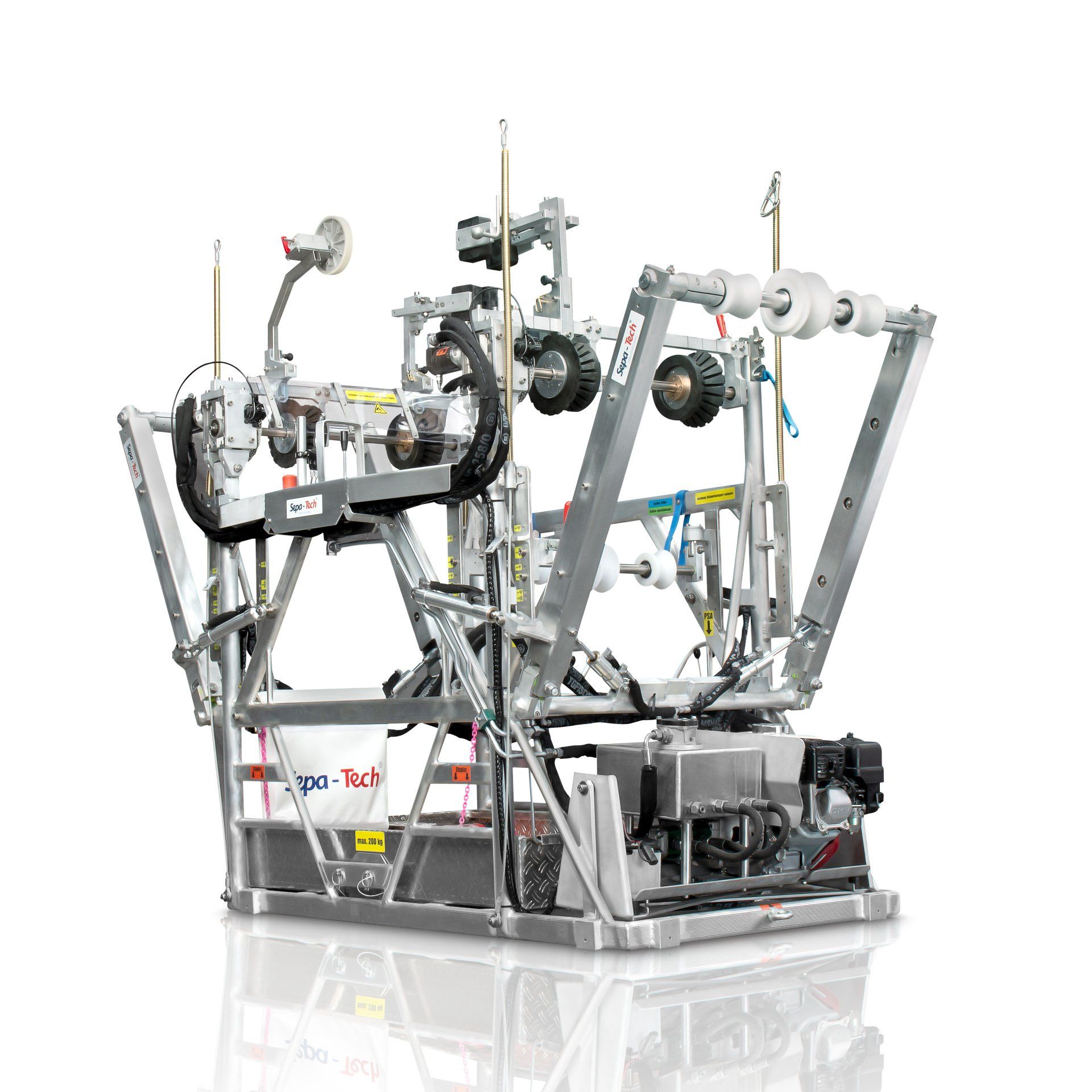

Cable trolley Hydraulic with motor

Cable trolley Hydraulic

 with motor

Technical data & product details

1200/4


  • Outer dimension (L x W x H):

    2300 x 1100 x 1500 mm

  • Unladen weight:

    265 kg

  • Payload:

    200 kg

  • Inside dimension:

    830 x 1050 mm

  • Max. Number of persons:

    1 Person

  • Speed:

    Max 6 km/h

  • Rope diameter::

    19 up to 40 mm

  • Single rope:

    incl. air warning spheres max. 650 mm

  • Bundle of 2 horizontally:

    Rope spacing: 300 mm, 400 mm, 500 mm, 600 mm

  • Bundle of 2 vertical:

    Rope spacing: 400 mm,

    500 mm, (300,400,500 mm)

  • Bundle of 3:

    Rope spacing: 400 mm,

    500 mm, (300,400,500 mm)

  • Bundle of 4:

    Rope spacing: 400 mm,

    500 mm, (300,400,500 mm)

  • Lifting arm:

    extendable 200 & 400 mm

  • Max. angle of inclination:

    Dry 30° / Wet °15

  • Drive

    Honda 4 Taktmotor mit 5 PS & Anlasser schwingend, dämpfend gelagert


    Start/Stop-System inklusive

    besserer Steigfähigkeit durch schwenkbares Antriebs-

    aggregat

  • Useful life per tank filling:

    approx. hours2

  • Axles:

    2 Driven axles with rubber wheels

    2 axles with plastic rollers

    1 additional axle with high flank (centre roller)

  • Optional

    Rescue flap,

    Support feet for simplified transport, special versions on request

  • Standard equipment:

    Robust frame made of welded aluminium profiles, emergency stop, fire extinguisher with protective cover, lifting points for lifting,

    Bracket for net, towing eyes, drive roller cover made of unbreakable, transparent polycarbonate, Biodegradable hydraulic oil

  • Brakes:

    2 lowering brakes on the gearboxes, 2 mechanical disc brakes, crank2 brakes

  • Transport:

    Integrated forklift pockets for transport in standard equipment

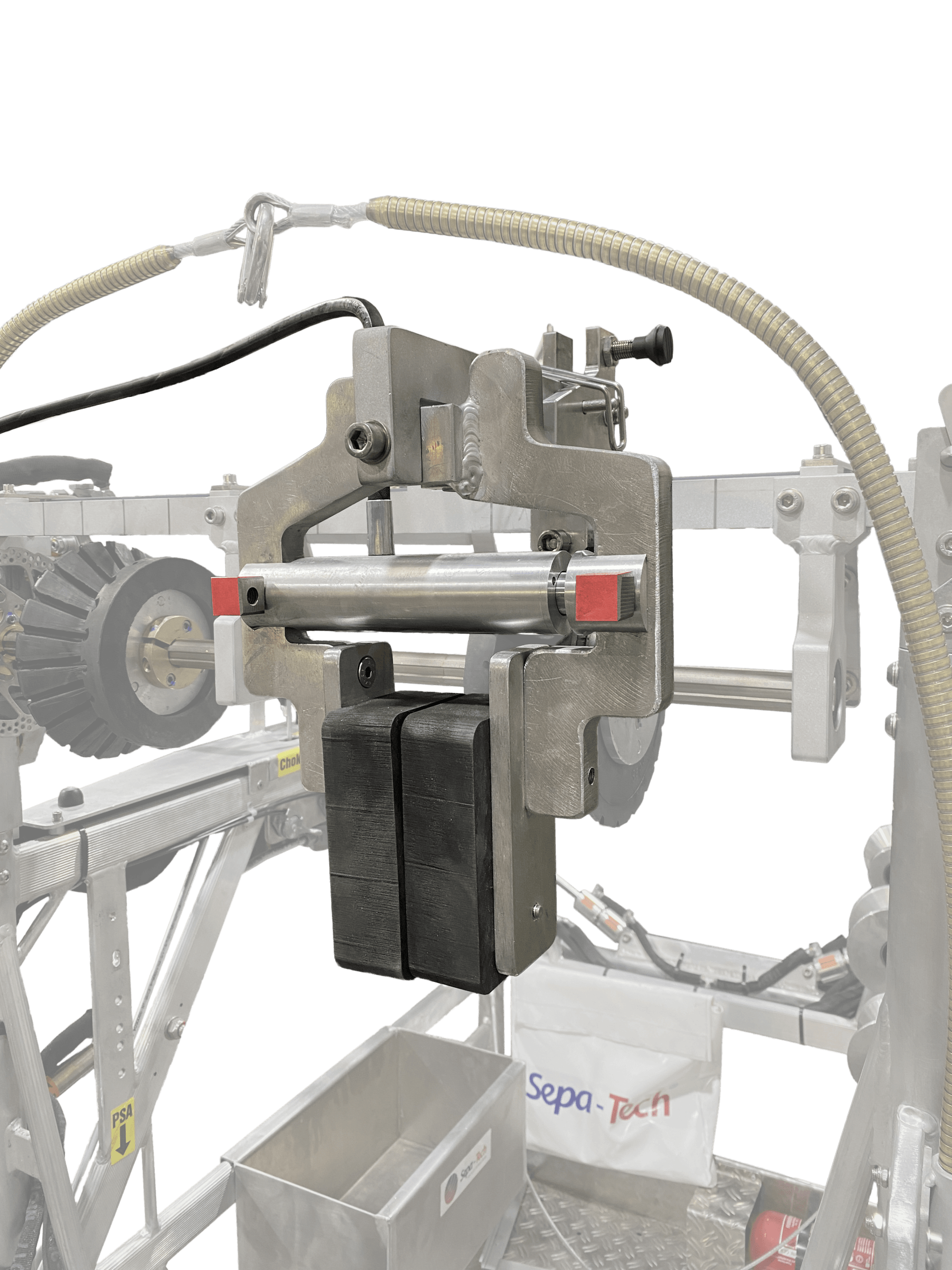

VAHB

Full automatic

hydraulic brake

  • Product features

    • Hydraulically driven cable trolley with hydraulic lifting arms and welded aluminium profiles for -1 Conductor4 cables

    • (max. conductor distance mm600)

    • Fast and safe passing over the support masts

    • 600 spacing also possible with horizontal bundles2

    • Hydraulic hoses and fittings with special sealing system

  • Safety accessories

    • Height rescue concept : Item no.: HRK-Basis

    • Second additional axis with high flank : Optional safety accessory for 2-piece vertical bundle

    • Continuous safety net : Item no.: Net1200

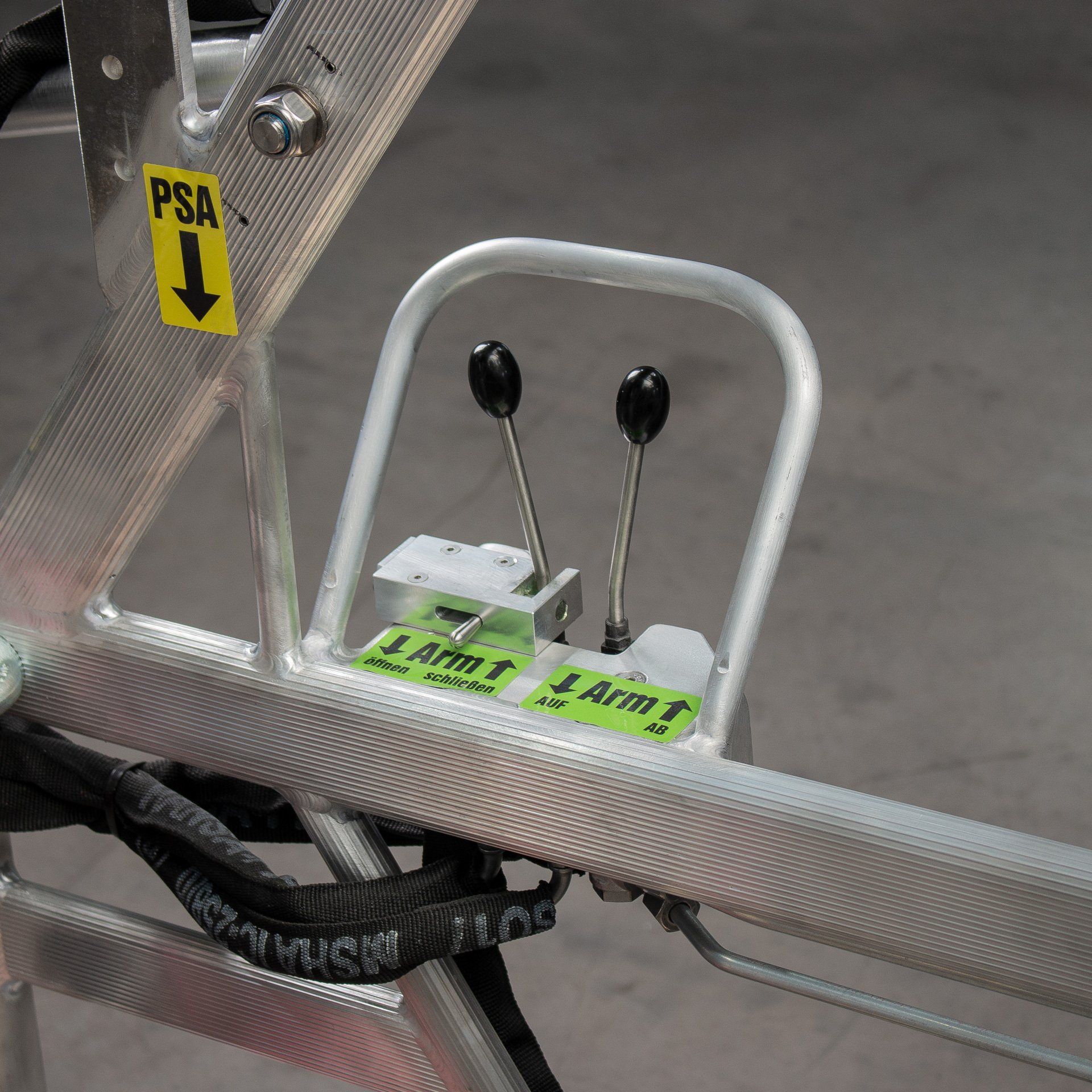

    • Open the safety lock for the operating lever Lifting arms : Item no.: 1200/4 Ss

    • Hydraulic (automatic) parking brake

  • Standard accessories

    • Meter counter: Art no.: 1202

    • Battery monitor with charger: Art no.: 1201

    • Transport box: Item no.: LFW-TK

    • Lifting chains : Art no.: 280

    • Toolbox: Art no.: 254

    • Bundle elevator: BAZR- 440 x 550
