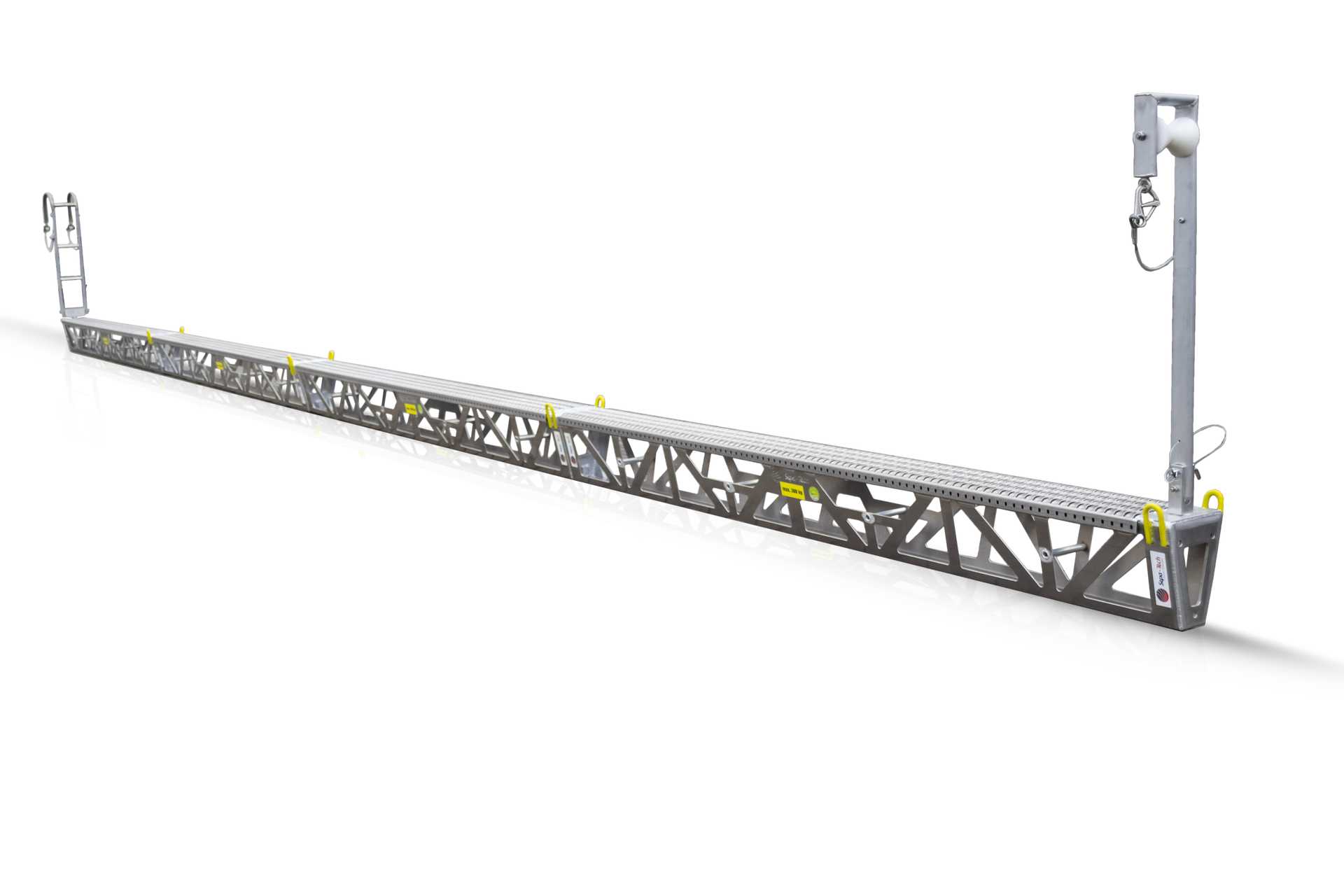

Trapeze work platform
Trapeze work platform
Technical data & product details
TR-AB-240-300-XXXX
| Artikel-Nr.: | TR-AB-240-300-3000 | TR-AB-240-300-6000 | TR-AB-240-300-9000 | TR-AB-240-300-12000 |
|---|---|---|---|---|
| Length (mm) | 3000 | 6000 | 9000 | 12000 |
| Width (mm) | 240 | 240 | 240 | 240 |
| Height (mm) | 300 | 300 | 300 | 300 |
| Payload (kg) | 300 | 300 | 300 | 300 |
| Own weight (kg) Variant bracket | 29 | 51,5 | 73,5 | 96,5 |
| Own weight (kg) Variant w. small ladder | 33 | 54,5 | 77,5 | 100,5 |
| Extensions | Possibly | Possibly | Possibly | - |
| 4-12m | 7-12m | 10-12m |
Mast Side Selectable

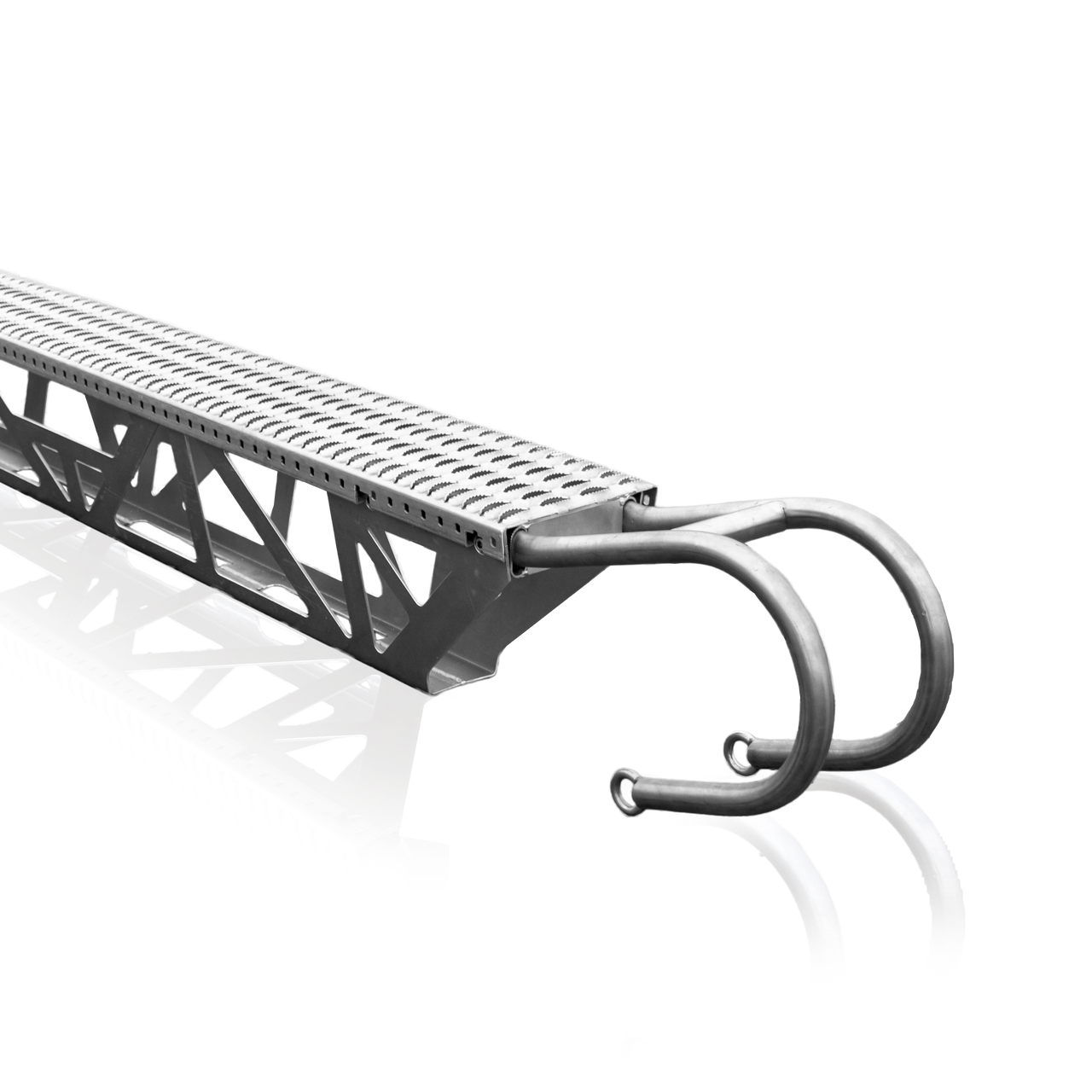

Stainless steel mast hoop with safety rope

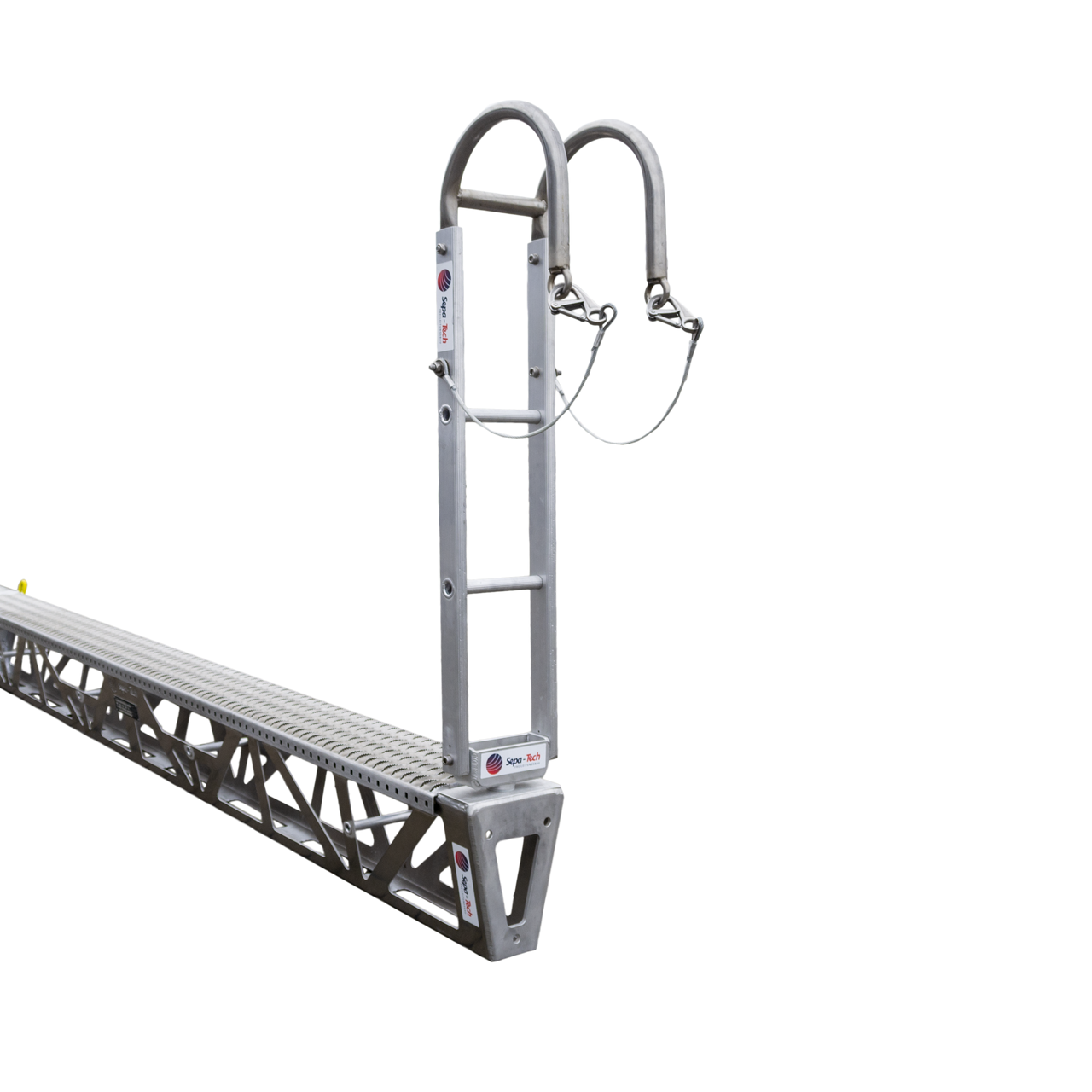

Small ladder with stainless steel bracket: rotatable and foldable Catch rope with carabiner
Product features
- Attachment point for TSG as standard
- Pole side selectable : Stainless steel pole bracket with safety device Small ladder with stainless steel bracket and safety device
- High stability & payload due to trapezoidal construction
- Anti-slip due to high quality walkway
