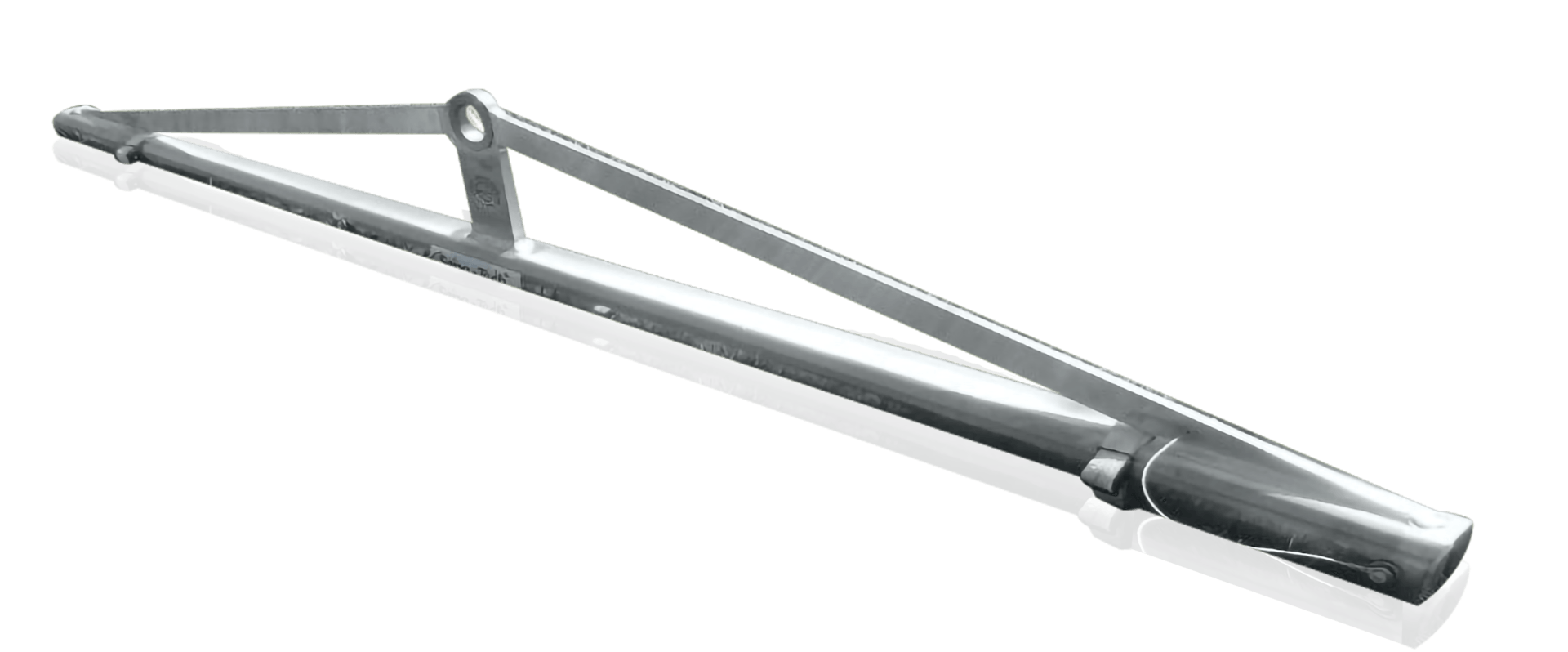

Traverse for Cable Lifter
Technical data & product details
TRA-2000
| Total length (mm) | 2000 |
|---|---|
| Width (mm) | 170 |
| Height (mm) | 300 |
| Payload (kg) | 1000-3000 |
| Own weight (kg) | 11 |
TRA-3000
| Total length (mm) | 3000 |
|---|---|
| Width (mm) | 170 |
| Height (mm) | 300 |
| Payload (kg) | 1000-3000 |
| Own weight (kg) | 13 |
TRA-4000
| Total length (mm) | 4000 |
|---|---|
| Width (mm) | 170 |
| Height (mm) | 395 |
| Payload (kg) | 1000-3000 |
| Own weight (kg) | 33 |
Payload can be increased on request.
TRA-2000-10
TRA-2000-20
Product features
- Traverse for two conduction lifters

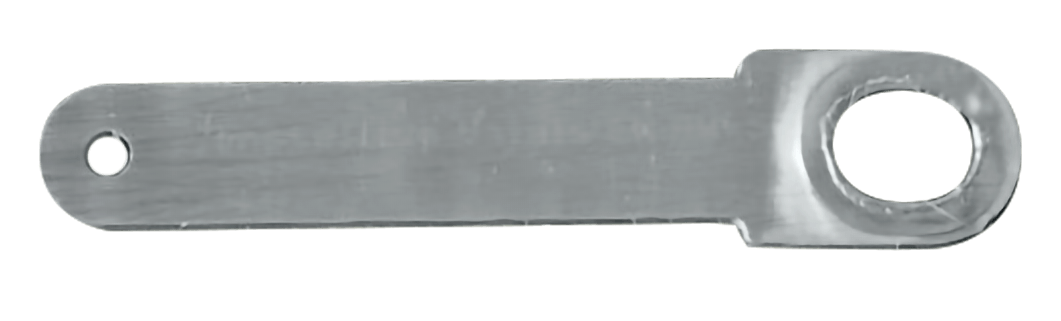

- Tabs are secured with hinged bolts without individual parts
